| Overview | ||||||
| ||||||

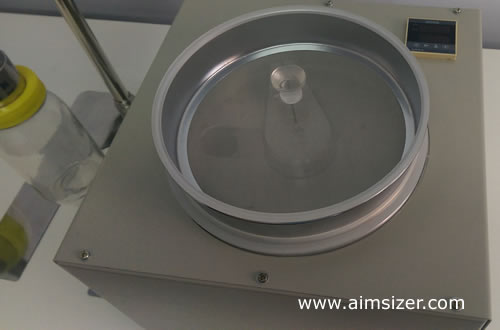

| Air Jet Sieve HMK-200 is a particle size analysis sieving machine for laboratory use. It works on latest air jet technology to determine particle size distribution of dry powders. Being widely used in almost every industry it has become a standard test sieve shaker equipment in the lab. AimSizer manufacturer HMK-200 Manual Air Jet Sieve and HMK-200e Automatic Air Jet Sieve. | ||||||
 | ||||||
hmk-200-manual-air-jet-sieve-shaker
| ||||||
 | ||||||
hmk-200e-automatc-air-jet-sieve
| ||||||
| HMK-200 Air Jet Sieve features high performance and reliable test results. It is in fact a test sieve shaker designed for particle size sieve analysis on particles from 5 micometer up to 5,000 micrometer. | ||||||
 | ||||||

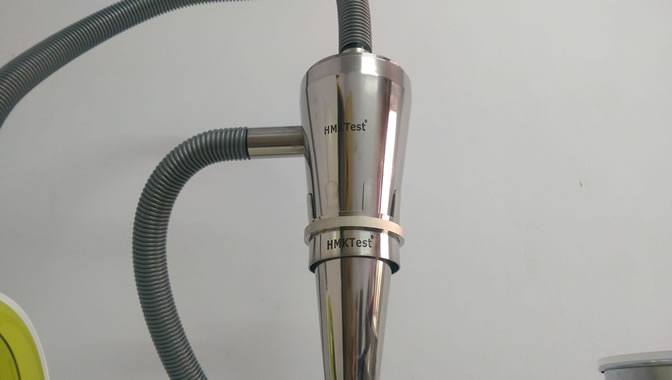

micon-alpine-hosokawa-aimsizer-air-jet-sieve-analysis
| ||||||

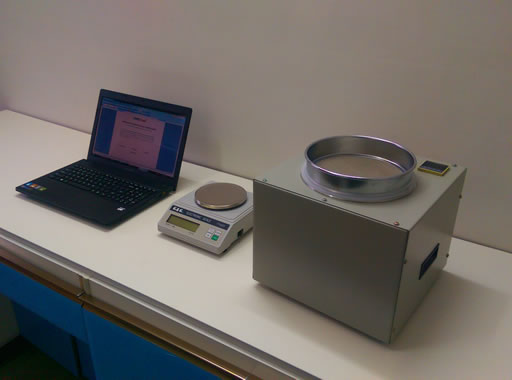

| The test procedure is optimized by a timer up to 99 minutes which saves operator's much time. Compact elegance and light weight make it easy to move in the lab. HMK-200 is a true analytical sieve shaker for laboratory use. | ||||||
 | ||||||
hmk-200-air-jet-sieve-shaker-hosokawa-alpine-micron-air-jet-sieving-machine-stainless-steel-cyclone-sample-collector
| ||||||

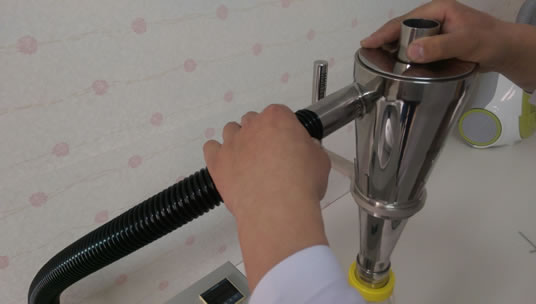

HMK-200 can do air jet sieving with an optional HMK-20 Air Jet Sieve Cyclone Sample Collector to collect undersize sample in a laboratory bottle, HMK-20 works with efficiency as accurate as 99.99%. A transparent lid contributes to a simple and intuitive operation. HMK-200 air jet sieve uses a vacuum to generate negative pressure under a lab test sieve and the particles are effectively separated by strong jet of air. The diameter of the sieving tank is 200 mm(8") designed for 200 mm standard test sieve. Smaller test sieves are also workable with HMK-200 by a customized tank.
| ||||||
 | ||||||
| In addition to normal samples, HMK-200 suits powdered materials that require particular dispersion and disagglomeration operations. HMK-200 is an effective analysis sieving machine working on the same principle of Alpine Air Jet Sieve. HMK-200 is in fact a micron air jet sieve, it's working range is micron range. | ||||||
 | ||||||
| Features | ||||||
| ||||||
| HMK-200 Air Jet Sieve Analysis Introduction | ||||||
| HMK-200 Air Jet Sieve Specifications | ||||||
| HMK-200 Air Jet Sieve Features and Functions | ||||||
| HMK-200 Air Jet Sieve Applications | ||||||
| HMK-200 Air Jet Sieve Demostration Video (working alone) | ||||||
| HMK-200 Air Jet Sieve Demonstration Video (working with cyclone sample collector) | ||||||
| HMK-200 Micron Air Jet Sieve Manual Procedures | ||||||
| The Prniciple of Operation of Air Jet Sieve HMK-200 | ||||||
| Buy Together With Air Jet Sieve | ||||||
| ISO 4610 - ISO Standard About Air Jet Sieving Test Using Multiple Sieves | ||||||
| ASTM D5158 - ASTM Standard About Air Jet Sieving Using Multiple Sieves | ||||||
| Sieve retention(Oversize) | ||||||
| How to Do Sampling Before Air Jet Sieve Analysis? | ||||||
| Air Jet Sieve Analysis Sample Preparation | ||||||
| History of Air Jet Sieve Shaker | ||||||
| Air Jet Test Sieve Shaker Spare Parts | ||||||
| Demo Videos | ||||||
| ||||||
| HMK-200 Air Jet Sieve | ||||||
| HMK-200 Air Jet Sieving Machine Cyclone Sample Collector | ||||||
| ||||||
| Air Jet Sieve e200 LS is an air jet sieve made by HOSOKAWA ALPINE. As HMK-200 Air Jet Sieve it is also a Laboratory air jet sieve for determining the particle size distribution of powdery materials in the range of 25 to 2,000 micrometer. | ||||||
 | ||||||
hmk-200-air-jet-sieve-analysis
| ||||||

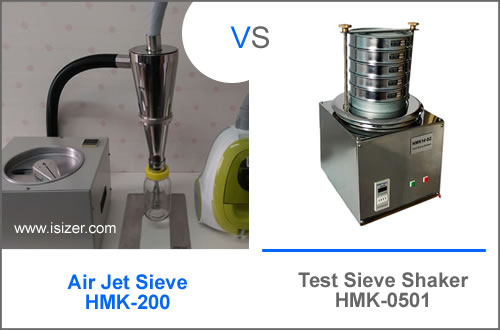

| What is the difference of an air jet sieve and a vibrating sieve? Both are widely used in sieving industries. An air jet sieve can only work with one standard test sieve and user has to change to another standard test sieve if he wants to sieve further. An air jet sieve is suitable for light specific density and those materials without regular physical shape. It is not recommended to use an air jet sieve to sieve hard particles, such move will disform and break the mesh orifice. A vibrating sieve works by using the material's density itself. | ||||||
 | ||||||
air-jet-sieve-and-test-sieve-shaker
| ||||||
| Who is the first developer of air jet sieve? | ||||||
| Hosokawa Alpine is the first manufacturer in the world that developed the process of air jet sieving technology more than 50 years ago. It also launched the first air jet sieve onto the market. | ||||||
 | ||||||
| What in fact an air jet sieve is? | ||||||
| An air jet sieve in fact is a new standards for particle size analysis, it is used to determine the particle size distributions of dry powders. | ||||||
| What are two most-used air jet sieves? | ||||||
| The ALPINE air jet sieve and HMK air jet sieves are the most-used device around the world. | ||||||
| Why many international companies and organizations stipulate AimSizer's air jet sieve as standard test equipment? | ||||||
| HMK-200 air jet sieve always provides reproducible air jet sieve analysis in the range of 5 μm to 5,000 μm. | ||||||
| What is micon air jet sieve? | ||||||
| Micron air jet sieve is divided into Hosokawa micron air jet sieve, HMK Test micron air jet sieve (HMK-200), Humboldt's Micron Air-Jet Sieves,Alpine's air jet sieve, it is an effective single sieve system optimal for dry powders from No. 4 to 5µm,it utilizes the pneumatic sieving principle that enhances the accuracy and reproducibility of particle size analysis. | ||||||
| Introduction on A New Function of HMK-200A Air Jet Sieve---Open Mesh | ||||||
| The air jet sieve is a lab use test sieve; it uses the air to drive the particles pass through the sieve screen so as to achieve the purpose of sieving. As an indispensable sieving method in the sieving family, Air Jet Sieve is widely used in the world at present, especially the HMK -200A Air Jet Sieve made by AimSizer Scientific. It has become the best partner to conducting particle size analysis with sieving method in the laboratory. HMK -200A Air Jet Sieve is a one newly-developed by AimSizer based on a large number of scientific sieving research and calculation. It is the crystallization of the collective wisdom of the scientists and engineers of AimSizer. Today, we'll talk about one of the new function of HMK -200A Air Jet Sieve: Opening mesh. Opening mesh is a flash point of HMK -200A Air Jet Sieve. This function will surprise the laboratory | ||||||
| Air Jet Sieve | ||||||
Thursday, August 25, 2016
How Air Jet Sieving Method Works?
How Air Jet Sieving Method Works?
